SHYSKY DC55E-24160S 24VDC Small Power efficient Brushless Water Pump 80W 16m 52ft Lift 634GPH Low Noise For Water Circulation Pressurization Cooling sys, Submersible, IP68 Waterproof

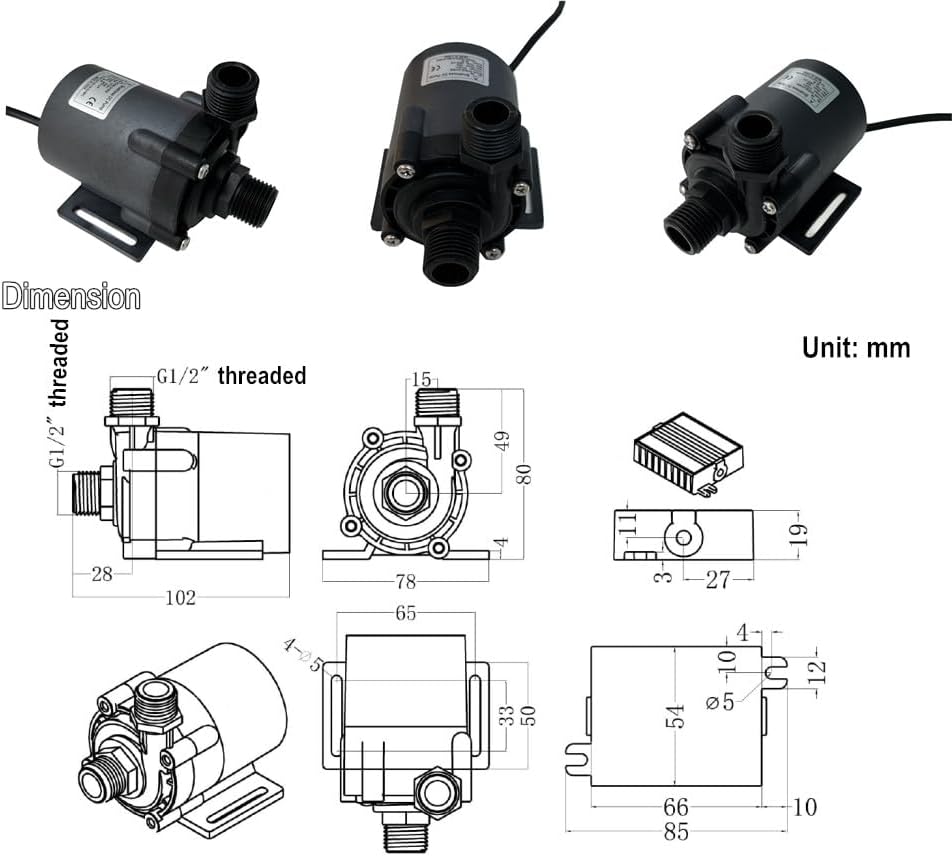

SHYSKY DC55E-24160S Water pump, Inlet: G1/2, with external diameter of 20mm, outlet: G1/2, with external diameter of 20mm; Max static lift: 16 m (in pressure, 0.16MPa or 23PSI); Max horizontal flow rate: 2400 LPH (~ 40 L/Min).Typical feature is with quite high lift (output pressure) value, but with relatively low flow rate, suitable for some micro pressure system. (Certain parameters, cable length and other specific functions can be specially CUSTOMIZED, based on exact discussion and certain MOQ & lead time.)

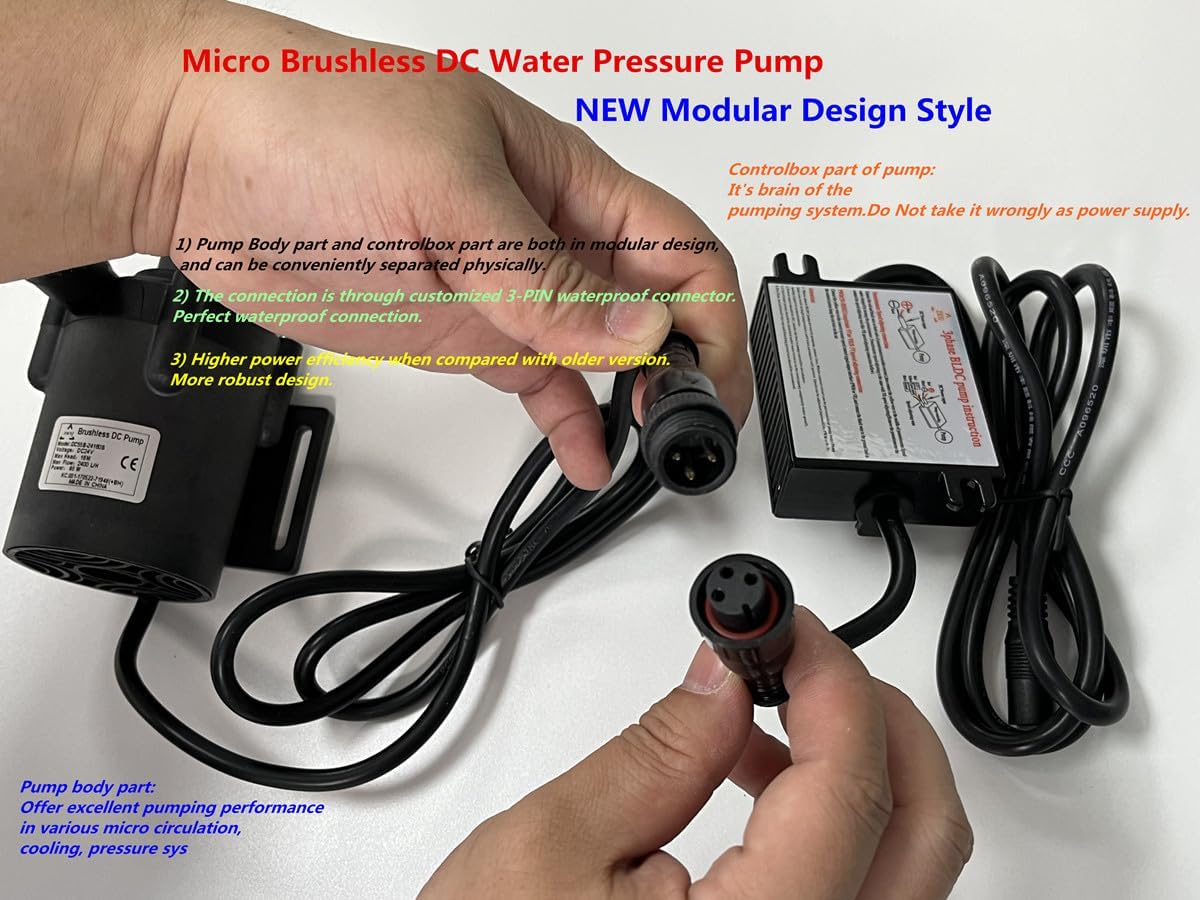

Brushless DC motor, also known as EC motor; Magnetic Driven (NO DIRECT AC 100-240V POWER CONNECTION, PROHIBITED); Small size but strong; Low consumption & High Efficiency; Long time continuous working with low noise;Safety - no spark, Explosion - proof; Low noise about 40dB.
Submersible, IP68 waterproof; Max Working Temperature: 100 degree; Wide range of working voltage; Maintenance - free; Can be used to pump water, oil, other non-corrosive liquids (special liquids are needed to be pre-tested in advance).
Variety Power: DC electric source, Battery or Solar Panel, etc; Soft Start with Low in-rush current, Especially suitable for Solar SYS who can not provide over-high startup impulse current; OEM and ODM are accepted based on MOQ and exact inquiry of customers.
NEW DRY-RUN PROTECTION feature is integrated in default: Pump works at rated voltage, when no or in-sufficient water in-flow (or significant air bubble contained), it is DRY RUN scenario and protection will be triggered; Pump will access stop-run-stop-run---cycle, greatly reducing rotation. When flow comes sufficiently again, pump will re-access normal run. This greatly reduces physical damage possibly caused by friction between parts, and generated heat too, protecting pump. Yet, protection does not completely eliminate the impact if long time dry run, since pump doesn't stop completely in this context.
