2x18 Hydraulic Cylinder 3 Ton Double Acting Welded Hydraulic Cylinder 2" Bore x 18" Stroke with 3/8" JIC 37°(9/16"-18 Thread) Hydraulic End Connectors Maximum Thrust Force 6613lbs
Retail Value: $128.69
$5.00
Ends in
Condition: Open Box
Description

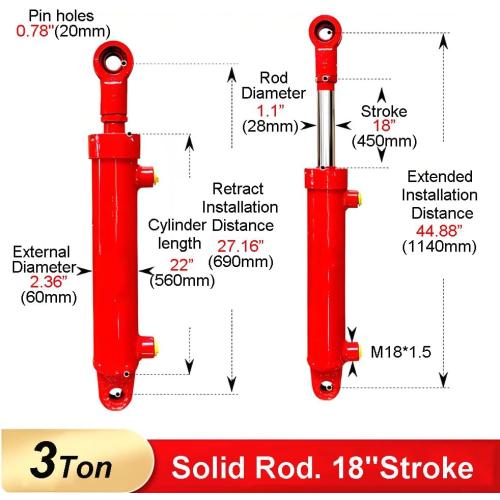

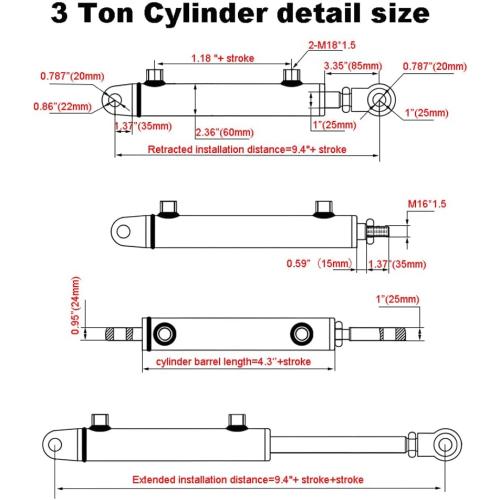

Bore:2"(50mm),OD:2.36"(60mm),Stroke:18inches(450mm),Rod:1.1"(28mm),Retracted:27.16"(690mm), Extended: 44.88"(1140mm), Pin holes: 0.78"(20mm)

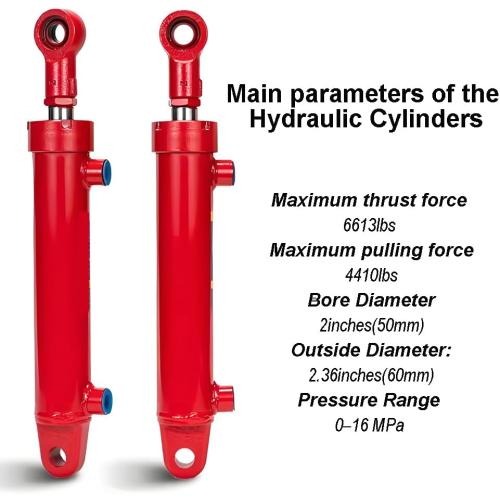

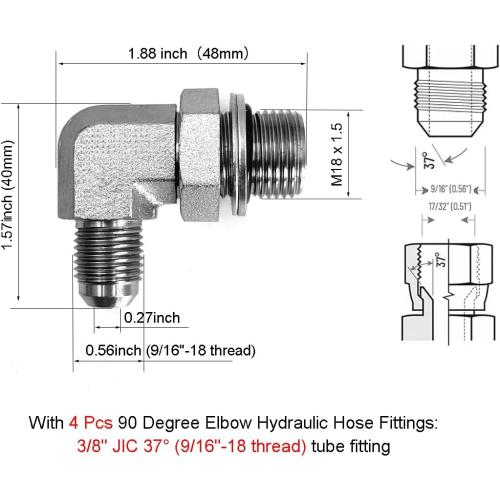

Welded Double Acting Hydraulic Cylinder with 3/8" JIC 37°(9/16"-18 thread) Tube Fitting, Rated Pressure: 2320 PSI. Maximum thrust force 6613lbs, Maximum pulling force 4410lbs

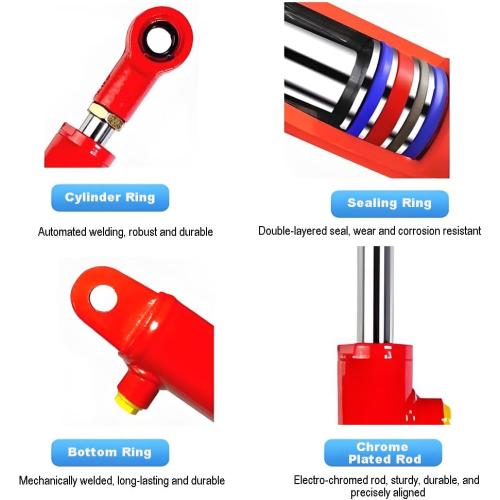

Fully Welded Cylinder Design , Heavy-duty steel construction for high strength, impact resistance, and corrosion protection in harsh outdoor environments. High-quality compact sealing prevents leaks and rust. Features a solid chrome-plated rod for rugged durability and anti-deflection performance.
All hydraulic cylinders are strictly pressure-tested to dependable performance .
Suitable for use in hydraulic systems of: construction machinery, agricultural equipment, material handling equipment, and custom hydraulic designs.
Welded Double Acting Hydraulic Cylinder with 3/8" JIC 37°(9/16"-18 thread) Tube Fitting, Rated Pressure: 2320 PSI. Maximum thrust force 6613lbs, Maximum pulling force 4410lbs
Fully Welded Cylinder Design , Heavy-duty steel construction for high strength, impact resistance, and corrosion protection in harsh outdoor environments. High-quality compact sealing prevents leaks and rust. Features a solid chrome-plated rod for rugged durability and anti-deflection performance.
All hydraulic cylinders are strictly pressure-tested to dependable performance .
Suitable for use in hydraulic systems of: construction machinery, agricultural equipment, material handling equipment, and custom hydraulic designs.
